Wilwood Forged Dynalite Big Brake Front Brake Kits

Wilwood Forged Dynalite Big Brake Front Brake Kits

$877.00
$877.00
Sale Sold out

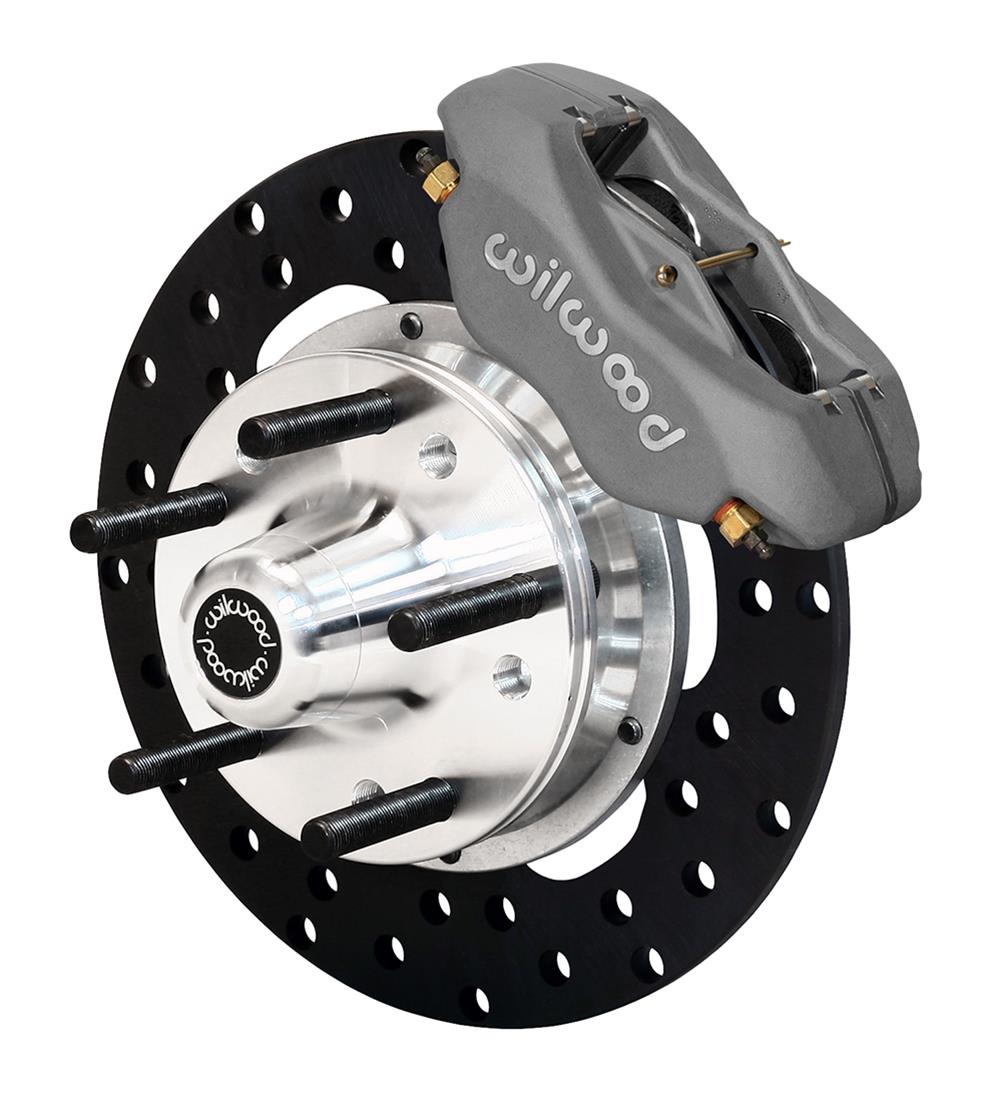

The Wilwood Forged Dynalite Big Brake Front Kit provides race-bred stopping power for 1964–1972 GM A-body muscle cars including Chevelle, GTO, Skylark, and Cutlass with 15-inch or larger wheels. This kit transforms the braking performance of classic intermediates that came with marginal drum brakes from the factory.

Features forged Dynalite four-piston calipers with 1.62-inch and 1.38-inch staggered stainless steel pistons for tapered pad wear. Rotors measure 12.88 inches in diameter with 48 curved cooling vanes for maximum thermal capacity. The GT-72 iron formulation resists heat checking at extreme temperatures. Includes Thermlock stainless steel pistons to reduce heat transfer to the brake fluid, high-temp pads, billet mounting brackets, and all hardware. Reduces unsprung weight by approximately 10 pounds per corner.

The staggered piston design optimizes pad pressure distribution across the rotor face, eliminating tapered wear that shortens pad life. The 12.88-inch rotor's thermal mass can absorb back-to-back 80–0 mph stops from a 3,800 lb Chevelle without noticeable fade. For an A-body with 450+ HP, this is the brake system that inspires confidence at triple-digit speeds.

Your A-body deserves brakes that match its performance. Install Wilwood Forged Dynalite and stop with authority. Order your kit today.
View full details

Frequently Asked Questions

What rotor diameter is included in the Wilwood Forged Dynalite big brake front kit?

The Wilwood Forged Dynalite big brake front brake kit typically includes 12.19-inch or 12.88-inch diameter rotors depending on the specific vehicle application and wheel clearance requirements. The rotors are constructed from Wilwood's proprietary cast iron alloy with curved-slot or drilled faces for heat and gas management. The Forged Dynalite calipers are four-piston billet aluminum units with stainless steel pistons that resist heat transfer to the brake fluid.

Will the Wilwood Forged Dynalite front kit fit under 15-inch or 17-inch wheels?

The Wilwood Forged Dynalite big brake front kit typically requires a minimum 16-inch wheel diameter, though some vehicle-specific kits may clear certain 15-inch wheels with tall spoke designs and proper backspacing. The Forged Dynalite caliper is significantly smaller than the Superlite or Aero6 calipers, making it one of the most compact big brake options available. Always check wheel clearance by test-fitting before finalizing the installation, and use wheel spacers if necessary.

How does the Forged Dynalite four-piston caliper improve stopping power over a single-piston factory caliper?

The Wilwood Forged Dynalite four-piston caliper provides superior stopping power by applying even clamping force across the entire brake pad surface through four independent pistons, compared to a single-piston sliding caliper that can flex and apply uneven pressure. This results in shorter stopping distances by up to 15 to 20 feet from 60 MPH and better resistance to brake fade during repeated stops. The stiffer forged aluminum caliper body also improves pedal feel and modulation.

Does the Wilwood Forged Dynalite big brake kit include stainless steel brake lines?

The Wilwood Forged Dynalite big brake front kit includes stainless steel braided brake hoses with the correct AN fittings to connect the calipers to the vehicle's existing hard lines. The braided lines provide a firmer pedal feel by eliminating the expansion that occurs with rubber hoses under high hydraulic pressure. Wilwood includes all necessary banjo bolts, crush washers, and adapters for a complete installation with no additional parts needed.

What is the weight savings with the Wilwood Forged Dynalite big brake kit compared to stock?

The Wilwood Forged Dynalite big brake kit saves approximately 5 to 8 pounds per corner compared to a factory cast iron brake system, thanks to the lightweight forged aluminum calipers and aluminum-hat rotors. The two-piece rotor design uses an aluminum hub that reduces unsprung weight while the cast iron friction ring provides excellent heat absorption. Reducing unsprung weight improves suspension response and acceleration, making the big brake kit a performance upgrade beyond just stopping power.

What brake pad compounds are available for the Wilwood Forged Dynalite calipers?

The Wilwood Forged Dynalite calipers accept Wilwood's standard D-shaped brake pads in multiple compound options including BP-10 for daily driving, PolyMatrix H for street and track use, and PolyMatrix E for dedicated track or competition use. The BP-10 compound offers the best cold bite and lowest dust for street use, while PolyMatrix E handles temperatures up to 1,200 degrees Fahrenheit without fade. You can swap compounds as your driving needs change without changing the calipers or rotors.
