Wilwood Forged Dynalite Big Brake Front Brake Kits

Wilwood Forged Dynalite Big Brake Front Brake Kits

$946.00
$946.00
Sale Sold out

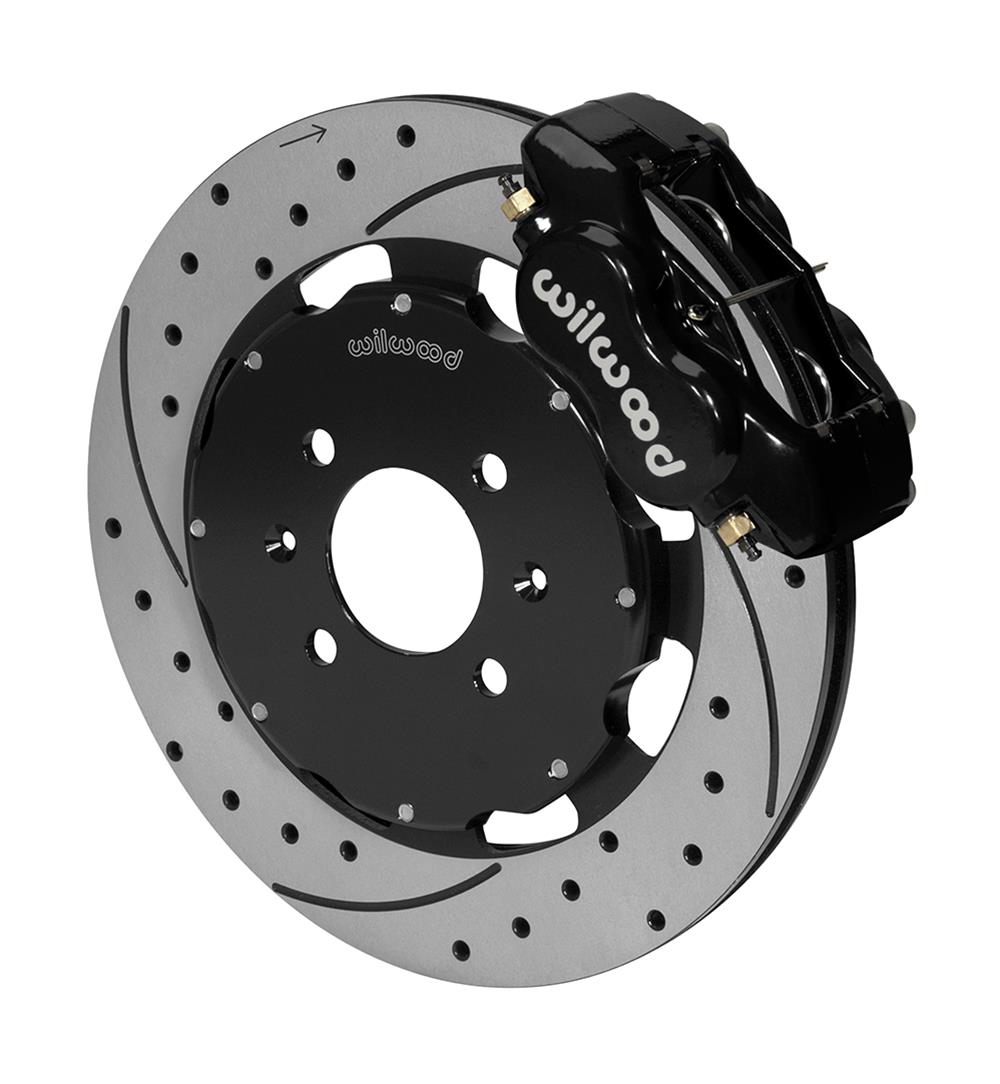

The Wilwood Forged Dynalite Big Brake Front Kit is a high-performance disc brake conversion for classic muscle cars, hot rods, and street machines. Engineered for vehicles with 15-inch or larger wheels, this kit delivers dramatically improved stopping power over factory drum or undersized disc setups.

Features forged Dynalite four-piston billet aluminum calipers with stainless steel pistons measuring 1.38 inches in diameter. Rotors are 12.19-inch diameter GT spec curved-vane iron, 1.10 inches thick, providing exceptional heat sink capacity for repeated high-speed stops. The kit includes billet aluminum mounting brackets, high-temperature brake pads rated to 1,200°F, and all necessary hardware for a complete bolt-on installation. Weight savings of approximately 8 pounds per corner versus factory cast iron calipers.

The Forged Dynalite caliper's rigid body minimizes flex under high line pressure, delivering consistent pad-to-rotor contact and eliminating the spongy pedal feel that plagues stock sliding calipers. The GT rotor's 48 curved vanes move more air than any straight-vane design, pulling heat out of the rotor core and extending pad life. This is the perfect front brake solution for a 3,200–3,800 lb muscle car with 400+ HP.

Your muscle car needs to stop as hard as it goes. Install Wilwood Forged Dynalite Big Brakes and haul down from speed with confidence. Order your kit now.
View full details

Frequently Asked Questions

What rotor diameter is included in the Wilwood Forged Dynalite big brake front kit?

The Wilwood Forged Dynalite big brake front brake kit typically includes 12.19-inch or 12.88-inch diameter rotors depending on the specific vehicle application and wheel clearance requirements. The rotors are constructed from Wilwood's proprietary cast iron alloy with curved-slot or drilled faces for heat and gas management. The Forged Dynalite calipers are four-piston billet aluminum units with stainless steel pistons that resist heat transfer to the brake fluid.

Will the Wilwood Forged Dynalite front kit fit under 15-inch or 17-inch wheels?

The Wilwood Forged Dynalite big brake front kit typically requires a minimum 16-inch wheel diameter, though some vehicle-specific kits may clear certain 15-inch wheels with tall spoke designs and proper backspacing. The Forged Dynalite caliper is significantly smaller than the Superlite or Aero6 calipers, making it one of the most compact big brake options available. Always check wheel clearance by test-fitting before finalizing the installation, and use wheel spacers if necessary.

How does the Forged Dynalite four-piston caliper improve stopping power over a single-piston factory caliper?

The Wilwood Forged Dynalite four-piston caliper provides superior stopping power by applying even clamping force across the entire brake pad surface through four independent pistons, compared to a single-piston sliding caliper that can flex and apply uneven pressure. This results in shorter stopping distances by up to 15 to 20 feet from 60 MPH and better resistance to brake fade during repeated stops. The stiffer forged aluminum caliper body also improves pedal feel and modulation.

Does the Wilwood Forged Dynalite big brake kit include stainless steel brake lines?

The Wilwood Forged Dynalite big brake front kit includes stainless steel braided brake hoses with the correct AN fittings to connect the calipers to the vehicle's existing hard lines. The braided lines provide a firmer pedal feel by eliminating the expansion that occurs with rubber hoses under high hydraulic pressure. Wilwood includes all necessary banjo bolts, crush washers, and adapters for a complete installation with no additional parts needed.

What is the weight savings with the Wilwood Forged Dynalite big brake kit compared to stock?

The Wilwood Forged Dynalite big brake kit saves approximately 5 to 8 pounds per corner compared to a factory cast iron brake system, thanks to the lightweight forged aluminum calipers and aluminum-hat rotors. The two-piece rotor design uses an aluminum hub that reduces unsprung weight while the cast iron friction ring provides excellent heat absorption. Reducing unsprung weight improves suspension response and acceleration, making the big brake kit a performance upgrade beyond just stopping power.

What brake pad compounds are available for the Wilwood Forged Dynalite calipers?

The Wilwood Forged Dynalite calipers accept Wilwood's standard D-shaped brake pads in multiple compound options including BP-10 for daily driving, PolyMatrix H for street and track use, and PolyMatrix E for dedicated track or competition use. The BP-10 compound offers the best cold bite and lowest dust for street use, while PolyMatrix E handles temperatures up to 1,200 degrees Fahrenheit without fade. You can swap compounds as your driving needs change without changing the calipers or rotors.
