TRANSMISSION CROSSMEMBER

TRANSMISSION CROSSMEMBER

$210.50
$210.50
Sale Sold out

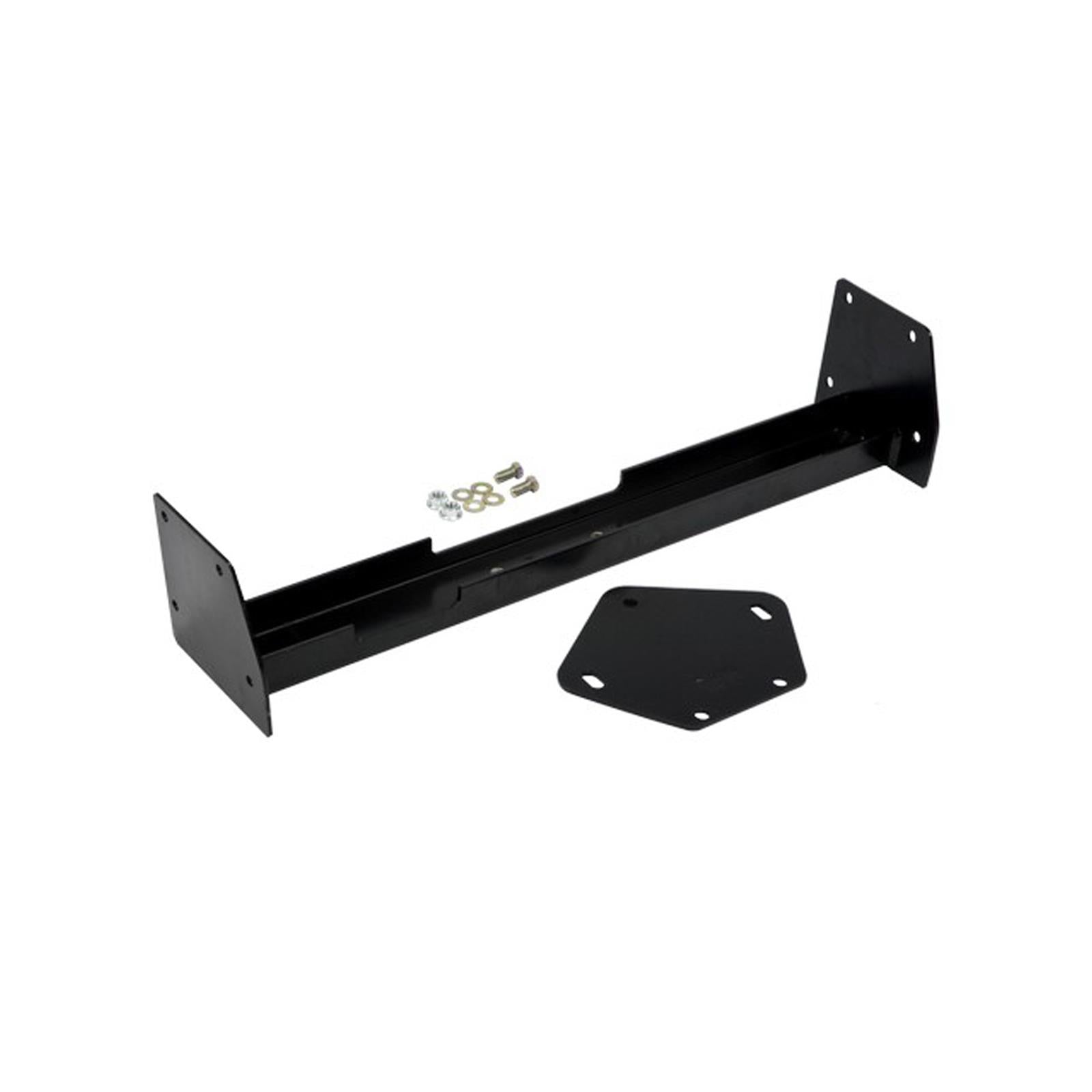

The Belltech Transmission Crossmember is a precision-engineered replacement specifically for 1997–2003 Ford F-150 and 1999–2004 Ford Expedition platforms. If you've lowered your truck or swapped in a different transmission, the factory crossmember often interferes with your new setup—Belltech's design offers both clearance and adjustability.

Fabricated from 0.120-inch wall 2-inch square steel tubing, this crossmember is powdercoated in Belltech's signature satin black for corrosion resistance. The design incorporates slotted mounting holes providing up to 1.5 inches of fore-aft adjustment range, allowing you to position the transmission mount optimally for your specific driveline angle—critical for eliminating vibration in lowered trucks. Rated to support up to 600 HP applications.

A properly positioned transmission crossmember minimizes u-joint working angles and prevents premature driveshaft wear. For 3-inch and 4-inch drop kits, the Belltech crossmember provides necessary clearance for the transmission pan and exhaust routing while maintaining factory ground clearance. Direct bolt-in with no cutting or welding required.

If you've lowered your F-150, don't let driveline vibration ruin the ride. Get the Belltech crossmember and dial in your geometry. Order today.
View full details

Frequently Asked Questions

Does this Belltech transmission crossmember work with stock exhaust routing on my truck?

The Belltech transmission crossmember is designed with clearance for stock exhaust routing while providing a lower mounting point for the transmission to correct driveline angles on lowered trucks. It is constructed from CNC-machined steel or aluminum for strength and features slotted mounting holes for fine adjustment of the transmission position. This crossmember is a popular upgrade for trucks lowered 2 to 4 inches where the stock crossmember no longer aligns the transmission output shaft with the pinion angle.

What grade of steel is the Belltech transmission crossmember made from?

Belltech transmission crossmembers are typically fabricated from CNC-mandrel-bent steel tubing or laser-cut plate steel with a durable powdercoat finish that resists rust and road debris. The crossmember is engineered to maintain the structural rigidity needed to support the transmission's weight under hard acceleration while allowing clearance for the exhaust system. Belltech crossmembers are vehicle-specific, so they bolt into the factory frame holes without drilling or modification.

Will this transmission crossmember work with a dropped or raised transmission mount?

Yes, the Belltech transmission crossmember is designed to work with both stock and lowered transmission mounts, which is necessary when lowering a truck to correct the driveline operating angle. The crossmember relocates the transmission tail housing to a position that keeps the driveshaft within an acceptable working angle of 1 to 3 degrees. Using a transmission mount spacer or a lowered mount in combination with this crossmember helps eliminate driveline vibration on lowered vehicles.

How does the Belltech crossmember help eliminate driveline vibration on lowered trucks?

The Belltech transmission crossmember eliminates driveline vibration on lowered trucks by repositioning the transmission tail housing to restore proper driveline angularity after the suspension is lowered. When a truck is lowered, the transmission output shaft angle changes relative to the pinion flange, which can cause driveshaft vibration and u-joint wear. This crossmember corrects the transmission angle so both the transmission and pinion are parallel, keeping the driveshaft working angle within the ideal 1-to-3 degree range.

Will I need to weld or modify the frame to install this transmission crossmember?

No, the Belltech transmission crossmember is designed as a direct bolt-in replacement that uses the existing frame mounting holes and transmission mount location, requiring no welding or drilling for most applications. Installation typically involves supporting the transmission, removing the factory crossmember, and bolting in the Belltech unit in the same position. Always jack the transmission slightly to take weight off the crossmember before removing the mounting bolts.

What Chevy and Ford truck models are compatible with the Belltech crossmember?

Belltech makes transmission crossmembers for a wide range of trucks including Chevy Silverado and GMC Sierra 1500, 2500, and 3500 models from 1999 through current generations, as well as Ford F-150 and Dodge Ram platforms. The specific fitment depends on the chassis cab configuration, wheelbase, and whether the truck has a single or dual exhaust. Check Belltech's application guide for your exact year, make, and model to ensure the correct crossmember part number.
