JE Pistons Premium Race Series Piston Rings

JE Pistons Premium Race Series Piston Rings

$192.50
$192.50
Sale Sold out

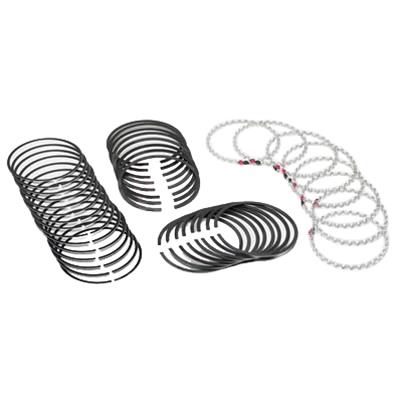

The JE Pistons Premium Race Series Piston Rings are premium piston rings engineered for maximum cylinder seal and minimal friction in high-performance engines. Piston rings are responsible for sealing combustion pressure, controlling oil consumption, and transferring heat from the piston to the cylinder wall. Ring selection directly affects power output, blow-by, and engine longevity.

These ring sets feature a high-quality top ring with appropriate face profile and material for your application, a Napier or reverse-taper second ring for effective oil control, and a low-tension oil ring assembly for reduced friction. The top ring material is selected for scuff resistance and thermal stability, with moly inlay or PVD coating available. Ring end gaps must be verified during assembly for your specific bore size and application type. Minimum gap recommendations vary by application -- naturally aspirated engines can run tighter gaps, while nitrous or forced induction engines require additional gap to prevent ring butting under high cylinder pressure.

Ring end gap and side clearance must be verified during assembly, especially when using aftermarket pistons and cylinder bore sizes different from stock. These rings are compatible with standard and performance cylinder hone finishes between 400 and 600 grit. The oil ring assembly is designed for low tension to reduce cylinder wall friction while maintaining effective oil control. Proper ring orientation during installation is critical for oil control and compression seal. Always follow the ring manufacturer's installation instructions and gap recommendations.

Add JE Pistons Premium Race Series Piston Rings to your rebuild for reliable cylinder seal.
View full details

Frequently Asked Questions

What bore size and ring set does the Atech piston ring kit fit for my engine build?

The Atech piston ring kit is available in standard bore sizes as well as common oversizes including 0.030-inch, 0.040-inch, and 0.060-inch. The ring pack typically includes a moly or ductile iron top ring, a cast iron second ring, and a low-tension oil ring assembly. The Atech ring set is designed for the specific bore diameter and ring groove dimensions of your pistons. Verify your cylinder bore size and piston ring groove specifications before selecting the Atech ring kit.

What gap should I set on Atech piston rings for a turbo or nitrous application?

For turbo or nitrous applications the Atech piston ring gaps should be set wider than normally aspirated builds to accommodate the additional heat expansion. The top ring gap on a Atech ring set should typically be 0.005 to 0.007 inches per inch of bore diameter for forced induction. The second ring gap should be slightly wider than the top ring to prevent pressure buildup between the rings. Always follow the Atech manufacturer recommended gap specifications for your specific application.

Can I install Atech piston rings without removing the engine from the vehicle?

You can install Atech piston rings without removing the engine if you remove the cylinder heads and oil pan to access the pistons from above and below. The pistons must be removed from the engine to access the ring grooves for the Atech rings. This is a major job that typically requires the engine to be on a stand for easier access. For most convenience remove the engine from the vehicle for the Atech ring installation.

How do I properly seat Atech piston rings during engine break-in?

To properly seat Atech piston rings the engine should be started and run at varying RPM between 2,000 and 4,000 for the first 20 minutes of operation. Avoid prolonged idling during break-in which can prevent the Atech rings from seating properly. Use the recommended break-in oil that is low in friction modifiers for the Atech ring seating process. After the initial break-in period drain the break-in oil and replace it with the standard oil for your engine.

What is the difference between moly and ductile iron Atech piston rings for my build?

Moly Atech piston rings feature a molybdenum-filled face that provides excellent scuff resistance and reduced cylinder wall wear. Ductile iron Atech rings offer higher tensile strength and better fatigue resistance for high-boost applications. Moly Atech rings are preferred for most street and naturally aspirated performance builds. Ductile iron Atech rings are recommended for turbocharged, supercharged, and nitrous engines where ring stress is highest.
