American Force Quake CCBR8 Series Polished Wheels 30x16

American Force Quake CCBR8 Series Polished Wheels 30x16

$4,250.00
$4,250.00
Sale Sold out

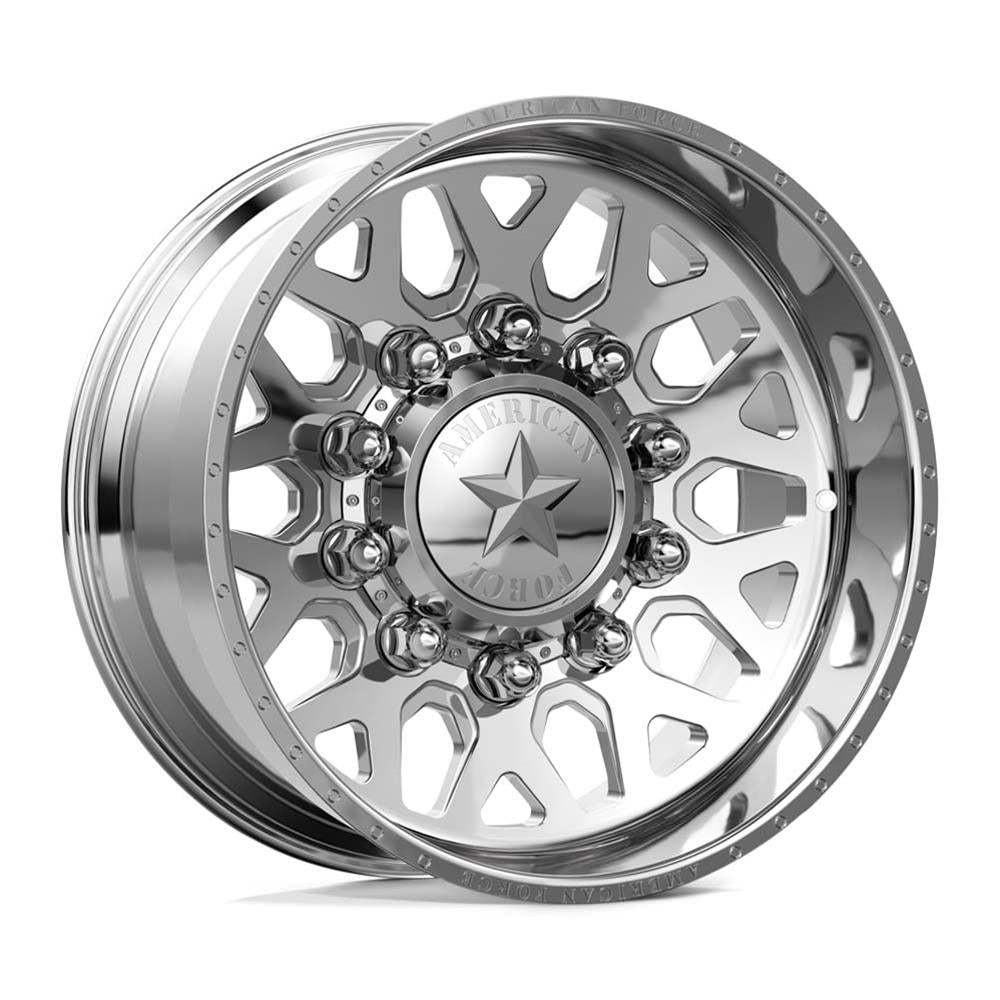

American Force Quake CCBR8 Series Polished Wheels

American Force Quake CCBR8 Series polished wheels feature aerospace-grade 6061-T6 forged aluminum and CNC milling techniques at the hands of skilled professionals. Each design is engineered with FEA (Finite Element Analysis) software testing and physical destructive testing to ensure you have the highest quality wheels on your ride. From mirror-polished aluminum to color-matched candy finishes and a powdercoating department with endless techniques, American Force has what it takes to meet modern wheel design demands. Find out for yourself and take your ride to the next level with the American Force 7F91 Quake CCBR Series polished wheels best suited for your application.

Wheel Diameter:
30 in.
Wheel Width (in.):
16.00
Wheel Size:
30x16
Wheel Bolt Pattern (application):
  • 8 x 165.10mm
  • 8 x 6 1/2 in.
Wheel Material:
Forged aluminum
Designed for Dually Truck:
No
Wheel Face Color:
Polished
Wheel Face Finish:
Polished
Wheel Barrel/Lip Color:
Polished
Wheel Barrel/Lip Finish:
Polished
Manufacturers Wheel Series:
American Force Wheels Quake CCBR8 Series
Backspacing (in.):
4.00
Offset:
-112.00mm
Wheel Construction:
1-piece
TPMS Sensor Compatible:
Yes
Beadlock Type:
None
Lug Nut/Bolt Seat Style:
Conical seat - 60 degree
Hub Centric Ring Compatible:
Yes
Center Bore Diameter (in.):
4.61
Center Bore Diameter (mm):
117.00
Center Cap Included:
Yes
Load Rating (lbs.):
3,500 lbs.
Lug Nuts Included:
No
Small Diameter Lug Nuts Required:
No
Valve Stems Included:
No
Recommended Valve Stem:
7/16 in. pull-through
Quantity:
Sold individually.
Notes:
Concave forging.



Other product features include:

* Designed to exceed SAE guidelines
* Standard polished finish with custom available (special order)
* Standard bolt patterns with custom available (special order)
* Variety of available diameters and offsets
