aFe Control Sway-A-Way Coilover Shocks for 2017-2020 F-150 - 301-5000-02

aFe Control Sway-A-Way Coilover Shocks for 2017-2020 F-150 - 301-5000-02

$2,929.00
$2,929.00
Sale Sold out

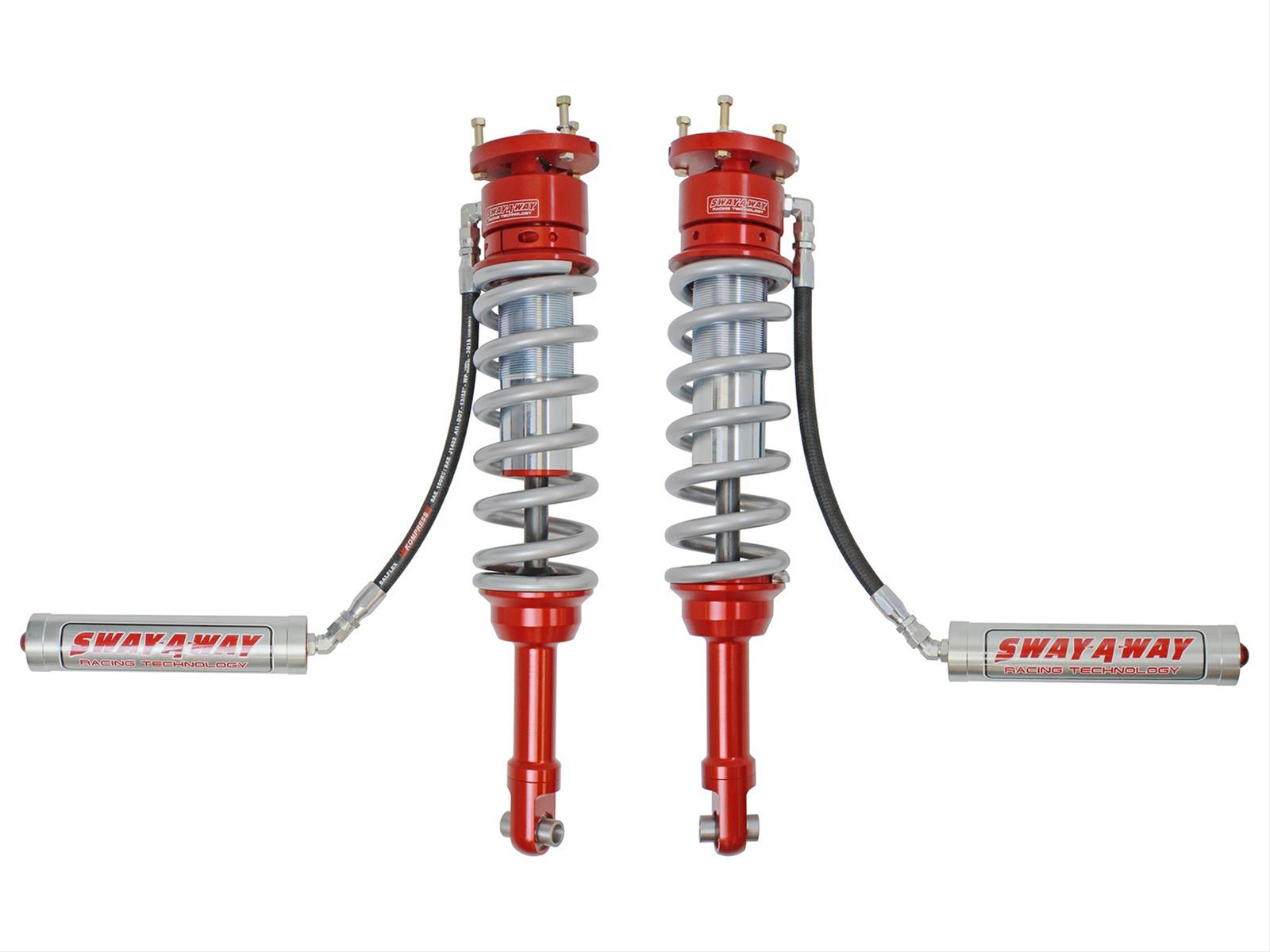

The aFe Control Sway-A-Way 301-5000-02 coilover shocks deliver race-bred, position-sensitive damping for the 2017-2020 Ford F-150. These 2.5-inch coilovers integrate an external bypass tube and threaded spring perch into a single unit — giving you both ride-height adjustability and 18-way damping control for high-speed off-road or daily performance.

CNC-machined 6061-T6 aluminum shock body with hard-anodized finish. The coil spring is wound from chrome silicon steel and rated for the F-150's lighter aluminum-body front end. Red anodized adjusters resist corrosion and provide tool-free damping changes. PTFE-lined bearings ensure friction-free stroke.

Bolt-in for the factory coilover location on 2017-2020 F-150s. Sold as a pair for the front. Includes spring perches, adjusters, and mounting hardware. Pair with Sway-A-Way rear bypass shocks for a full setup.

One coilover, infinite adjustments. aFe Control products are engineered and tested in Southern California, designed for the enthusiast who demands performance without compromise. The 301-5000-02 brings Sway-A-Way precision to the 2017-2020 F-150. Order your pair now.
View full details

Frequently Asked Questions

How much ride height adjustment do the aFe coilover shocks offer for my 2017-2020 F?

The aFe coilover shocks for your 2017-2020 F offer up to 3 inches of ride height adjustment via the threaded spring preload collar. The adjustment range spans from a 1-inch drop to a 2-inch lift depending on your application needs. These aFe coilover shocks use a CNC-machined 6061 aluminum spring perch with positive locking rings for secure height retention.

What spring rate comes with the aFe coilover kit for my 2017-2020 F?

The aFe coilover kit for your 2017-2020 F comes with 650 lbs/in coil springs in a 14-inch length as standard equipment. The springs are made from chrome silicon wire for consistent rate performance and fatigue resistance. These aFe coilover shocks are available with optional spring rates from 450 to 800 lbs/in for custom tuning.

Will the aFe Sway-A-Way coilover shocks fit my 2017-2020 F with a mild lift?

Yes, the aFe Sway-A-Way coilover shocks are designed to fit your 2017-2020 F with mild suspension lifts up to 3 inches. The 2.5-inch diameter shock body clears most aftermarket upper control arms and wheel wells at the adjusted ride height. These aFe coilover shocks include polyurethane bushings and are valved specifically for your 2017-2020 F's weight.

Does the aFe coilover kit for 2017-2020 F include adjustable damping?

Yes, the aFe coilover kit for your 2017-2020 F features 12-position rebound damping adjustment for fine-tuning chassis control. The compression damping is fixed from the factory at approximately 200 pounds of force at the mid-speed range. These aFe coilover shocks allow you to dial in the rebound from soft street cruising to firm off-road control.

Can I adjust the ride height on the aFe coilovers without removing them from my 2017-2020 F?

Yes, the ride height on the aFe coilovers adjusts easily using the threaded collar and spanner wrench included with the kit. Each full turn of the spring preload collar changes ride height by approximately 0.125 inches on your 2017-2020 F. These aFe coilover shocks do not require removal for height changes within the adjustment window.

How much suspension travel do the aFe coilover shocks provide for my 2017-2020 F?

The aFe coilover shocks for your 2017-2020 F provide approximately 12 to 14 inches of total wheel travel depending on the specific application. The shock extends to roughly 28 inches and collapses to 16 inches for your 2017-2020 F's suspension geometry. These aFe coilover shocks include a hydraulic bump stop for bottom-out control at full compression.
