aFe Control Sway-A-Way Coilover Shocks for 2010-2014 F-150 - 301-5600-10

aFe Control Sway-A-Way Coilover Shocks for 2010-2014 F-150 - 301-5600-10

$1,745.00
$1,745.00
Sale Sold out

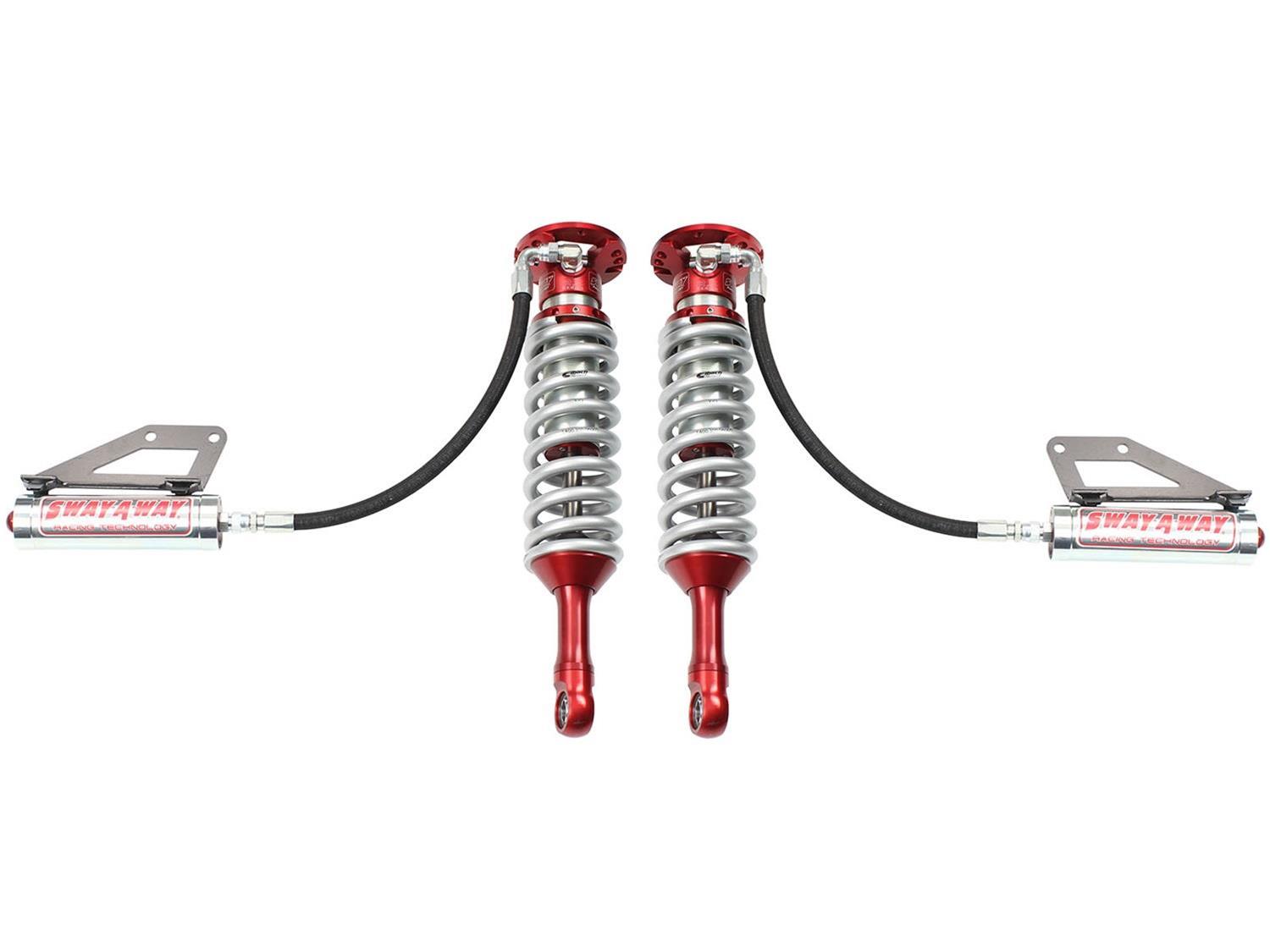

The aFe Control Sway-A-Way coilover shocks transform the 2010-2014 Ford F-150 into a high-speed off-road weapon. These 2.5-inch bodied coilovers combine a threaded spring perch with position-sensitive damping, giving you independent preload adjustment and 18-way external bypass tuning in a single assembly — total control over ride height, spring rate, and damping characteristics.

Built around a CNC-machined 6061 aluminum shock body with a hard-anodized finish, these coilovers use a chrome silicon steel coil spring wrapped around the reservoir tube. Spring rates are selected for the F-150's front-end weight bias, supporting up to 3 inches of lift while maintaining proper suspension geometry. Teflon-lined spherical bearings replace rubber bushings for zero-deflection articulation.

Complete assembly includes coil spring, threaded adjuster, spring perch, and all mounting hardware. Bolts directly into factory coilover mounting locations. Sold as a pair for the front. Pair with Sway-A-Way bypass shocks in the rear for a matched four-corner system.

Preload, damping, and lift — all in one package. Dial in your F-150 for prerunner pace or rock-crawling precision. Order the aFe Control coilover set now.
View full details

Frequently Asked Questions

How much ride height adjustment do the aFe coilover shocks offer for my 2010-2014 F?

The aFe coilover shocks for your 2010-2014 F offer up to 3 inches of ride height adjustment via the threaded spring preload collar. The adjustment range spans from a 1-inch drop to a 2-inch lift depending on your application needs. These aFe coilover shocks use a CNC-machined 6061 aluminum spring perch with positive locking rings for secure height retention.

What spring rate comes with the aFe coilover kit for my 2010-2014 F?

The aFe coilover kit for your 2010-2014 F comes with 650 lbs/in coil springs in a 14-inch length as standard equipment. The springs are made from chrome silicon wire for consistent rate performance and fatigue resistance. These aFe coilover shocks are available with optional spring rates from 450 to 800 lbs/in for custom tuning.

Will the aFe Sway-A-Way coilover shocks fit my 2010-2014 F with a mild lift?

Yes, the aFe Sway-A-Way coilover shocks are designed to fit your 2010-2014 F with mild suspension lifts up to 3 inches. The 2.5-inch diameter shock body clears most aftermarket upper control arms and wheel wells at the adjusted ride height. These aFe coilover shocks include polyurethane bushings and are valved specifically for your 2010-2014 F's weight.

Does the aFe coilover kit for 2010-2014 F include adjustable damping?

Yes, the aFe coilover kit for your 2010-2014 F features 12-position rebound damping adjustment for fine-tuning chassis control. The compression damping is fixed from the factory at approximately 200 pounds of force at the mid-speed range. These aFe coilover shocks allow you to dial in the rebound from soft street cruising to firm off-road control.

Can I adjust the ride height on the aFe coilovers without removing them from my 2010-2014 F?

Yes, the ride height on the aFe coilovers adjusts easily using the threaded collar and spanner wrench included with the kit. Each full turn of the spring preload collar changes ride height by approximately 0.125 inches on your 2010-2014 F. These aFe coilover shocks do not require removal for height changes within the adjustment window.

How much suspension travel do the aFe coilover shocks provide for my 2010-2014 F?

The aFe coilover shocks for your 2010-2014 F provide approximately 12 to 14 inches of total wheel travel depending on the specific application. The shock extends to roughly 28 inches and collapses to 16 inches for your 2010-2014 F's suspension geometry. These aFe coilover shocks include a hydraulic bump stop for bottom-out control at full compression.
